KCM 120H/ KCM 120H-2

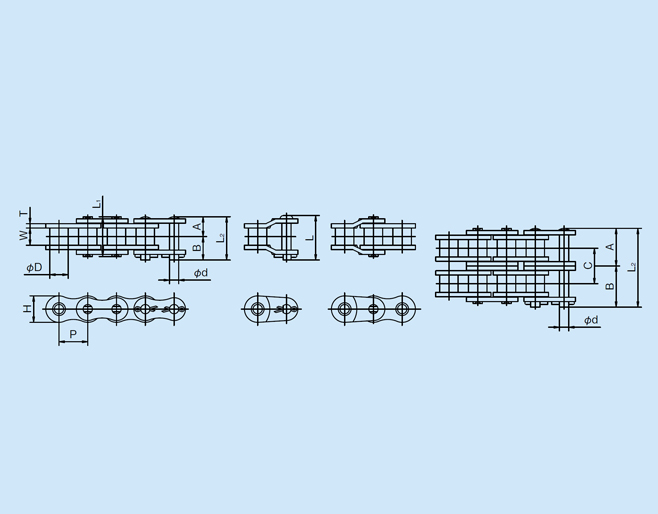

Pitch P: 38.10
Width between Inner Plates W: 25.40
Roller Dia.D: 22.23
Pin: Dia.d: 11.11
      A: 26.95/ 51.30
      B:  30.15/ 54.70
      (A+A) L1: 53.90/ 102.60
      (A+B) L2: 57.10/ 106.00
      Offset L: 59.20/ 108.10
Link Plate: Thickness T: 5.6    Thickness t: 35.0   Height H: 48.9
Ave. Tensile Strength kN (kgf): 175.5(17,900)/ 351.1(35,800)
Max. Allowable Load kN (kgf): 31.84(3,350)/ 55.78(5,690)
Approx. Weight (kg/m): 6.28/ 12.45
Links of KCM JIS & 1 unit: 80

KCM 120H/ KCM 120H-2
KCM 80H/ KCM 80H-2

Pitch P: 25.40
Width between Inner Plates W: 15.88
Roller Dia.D: 15.88
Pin: Dia.d: 7.94
      A: 17.80/ 34.00
      B:  20.70/ 37.10
      (A+A) L1: 35.60/ 68.00
      (A+B) L2: 38.50/ 71.10
      Offset L: 40.15/ 72.80
Link Plate: Thickness T:  4.0    Thickness t: 23.0   Height H: 32.6
Ave. Tensile Strength kN (kgf): 89.2(9,100)/ 178.5(18,200)
Max. Allowable Load kN (kgf): 16.18 (1.650)/ 27.45 (2,800)
Approx. Weight (kg/m): 2.96/ 5.84
Links of KCM JIS & 1 unit: 120

KCM 80H/ KCM 80H-2
KCM 50H/ KCM 50H-2

Pitch P: 15.875
Width between Inner Plates W: 9.53
Roller Dia.D: 10.16
Pin: Dia.d: 5.09
      A: 10.98/ 20.78
      B: 12.42/ 22.22
      (A+A) L1: 21.95/ 41.55
      (A+B) L2: 24.65/ 44.25
      Offset L: 21.00/ 37.40
Link Plate: Thickness T: 2.4    Thickness t: 14.6   Height H: 19.6
Ave. Tensile Strength kN (kgf): 36.2 (3,700)/ 72.5 (7,400)
Max. Allowable Load kN (kgf):  6.57 (670)/ 11.18 (1,140)
Approx. Weight (kg/m): 1.43/ 2.83
Links of KCM JIS & 1 unit: 192

KCM 50H/ KCM 50H-2
KCM 140H/ KCM 140H-2

Pitch P: 44.45
Width between Inner Plates W: 25.40
Roller Dia.D: 25.40
Pin: Dia.d: 12.71
      A: 28.95/ 55.05
      B: 32.95/ 59.05
      (A+A) L1: 57.90/ 110.10
      (A+B) L2: 61.90/ 114.10
      Offset L: 63.80/ 116.00
Link Plate: Thickness T: 6.4    Thickness t: 4.07   Height H: 52.2
Ave. Tensile Strength kN (kgf): 229.5(23,400)/ 459.0(46,800)
Max. Allowable Load kN (kgf): 43.13(4,400)/ 72.55(7,400)
Approx. Weight (kg/m): 7.83/ 15.50
Links of KCM JIS & 1 unit: 68/ 34

KCM 140H/ KCM 140H-2
KCM 60H/ KCM 60H-2

Pitch P: 19.05
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91
Pin: Dia.d: 5.96
      A: 14.35/ 27.30
      B: 15.75/ 28.80
      (A+A) L1: 28.70/ 54.60
      (A+B) L2: 30.00/ 56.10
      Offset L: 32.65/ 58.80
Link Plate: Thickness T: 3.2    Thickness t: 17.5   Height H: 26.1
Ave. Tensile Strength kN (kgf): 50.0 (5,100)/ 100.0 (10,200)
Max. Allowable Load kN (kgf): 9.60 (980)/ 16.27 (1,660)
Approx. Weight (kg/m): 1.77/ 3.56
Links of KCM JIS & 1 unit: 160

KCM 60H/ KCM 60H-2
KCM 100H/ KCM 100H-2

Pitch P: 31.75
Width between Inner Plates W: 19.05
Roller Dia.D: 19.05
Pin: Dia.d: 9.54
      A: 21.80/ 41.27
      B:  24.60/ 44.23
      (A+A) L1: 43.60/ 82.55
      (A+B) L2: 46.40/ 85.50
      Offset L: 48.30/ 87.40
Link Plate: Thickness T: 4.8    Thickness t: 28.9   Height H: 39.1
Ave. Tensile Strength kN (kgf): 128.5(13,100)/ 256.9(26,200)
Max. Allowable Load kN (kgf): 24.50(2,500)/ 41.67(4,250)
Approx. Weight (kg/m): 4.17/ 8.23
Links of KCM JIS & 1 unit: 96

KCM 100H/ KCM 100H-2
KCM 40H/ KCM 40H-2

Pitch P: 12.70
Width between Inner Plates W: 7.95
Roller Dia.D: 7.92
Pin: Dia.d: 3.97
      A: 9.05/ 17.25
      B: 10.55/ 18.75
      (A+A) L1: 18.10/ 34.50
      (A+B) L2: 19.60/ 36.00
      Offset L: 21.00/ 37.40
Link Plate: Thickness T: 2.0    Thickness t: 11.7    Height H: 16.4
Ave. Tensile Strength kN (kgf): 23.5 (2,400)/ 47.0 (4,800)
Max. Allowable Load kN (kgf): 3.92 (400)/ 6.67 (680)
Approx. Weight (kg/m): 0.73/ 1.45
Links of KCM JIS & 1 unit: 240

KCM 40H/ KCM 40H-2
