KCM C2040/ KCM C2042

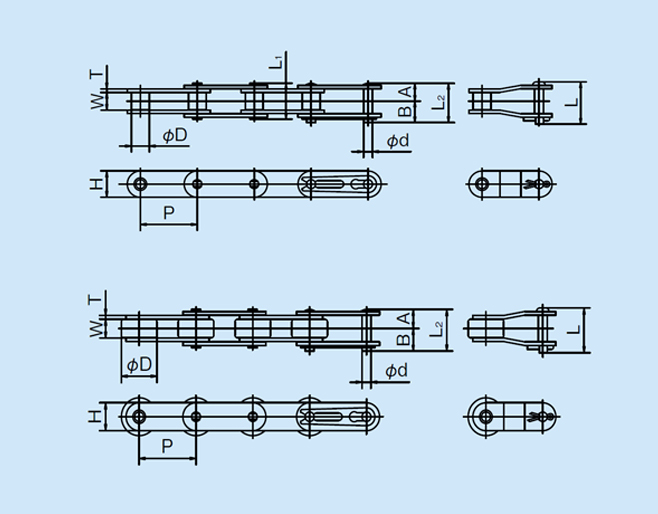

Pitch P: 25.40
Width between Inner Plates W: 7.95
Roller Dia.D: 7.92/ 15.88
Pin: Dia.d: 3.97
      A: 8.02
      B: 9.53
      (A+A) L1: 16.05
      (A+B) L2: 17.55
      Offset L: 18.95
Link Plate: Thickness T: 1.5         Height H: 11.7
Ave. Tensile Strength kN (kgf): 17.2 (1,750)
Max. Allowable Load kN (kgf): 2.65 ( 270)
Approx. Weight (kg/m): 0.48/ 0.82
Links of KCM JIS & 1 unit: 120

KCM C2040/ KCM C2042
KCM C2060/ KCM C2062

Pitch P: 38.10
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91/ 22.23
Pin: Dia.d: 5.96
      A: 12.65
      B: 14.15
      (A+A) L1: 25.30
      (A+B) L2: 26.80
      Offset L:  29.45
Link Plate: Thickness T: 2.4        Height H: 17.5
Ave. Tensile Strength kN (kgf): 39.5 (4,000)
Max. Allowable Load kN (kgf): 6.28 (640)
Approx. Weight (kg/m):1.12/ 1.79
Links of KCM JIS & 1 unit: 80

KCM C2060/ KCM C2062
KCM C2080H/ KCM C2082H

Pitch P: 50.80
Width between Inner Plates W: 15.88
Roller Dia.D: 15.88/ 28.58
Pin: Dia.d: 7.94
      A: 17.70
      B: 20.80
      (A+A) L1: 35.40
      (A+B) L2: 38.50
      Offset L:  40.15
Link Plate: Thickness T: 4.0        Height H: 23.0
Ave. Tensile Strength kN (kgf): 68.6 (7,000)
Max. Allowable Load kN (kgf): 10.69 (1,090)
Approx. Weight (kg/m): 2.37/ 3.41
Links of KCM JIS & 1 unit: 60

KCM C2080H/ KCM C2082H
KCM C2120H/ KCM C2122H

Pitch P: 76.20
Width between Inner Plates W: 25.40
Roller Dia.D: 22.23/ 44.45
Pin: Dia.d: 11.11
      A: 26.85
      B: 30.25
      (A+A) L1: 53.70
      (A+B) L2: 57.10
      Offset L:  59.30
Link Plate: Thickness T: 5.6        Height H: 35.0
Ave. Tensile Strength kN (kgf): 149.1 (15,200)
Max. Allowable Load kN (kgf): 23.93 (2,440)
Approx. Weight (kg/m): 4.75/ 7.40
Links of KCM JIS & 1 unit: 40

KCM C2120H/ KCM C2122H
KCM C2060H/ KCM C2062H

Pitch P: 38.10
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91/ 22.23
Pin: Dia.d: 5.96
      A: 14.25
      B: 15.75
      (A+A) L1: 28.50
      (A+B) L2: 30.00
      Offset L:  32.65
Link Plate: Thickness T: 3.2        Height H: 17.5
Ave. Tensile Strength kN (kgf): 39.5 (4,000)
Max. Allowable Load kN (kgf): 6.28 (640)
Approx. Weight (kg/m): 1.43/ 2.11
Links of KCM JIS & 1 unit: 80

KCM C2060H/ KCM C2062H
KCM C2100H/ KCM C2102H

Pitch P: 63.50
Width between Inner Plates W: 19.05
Roller Dia.D: 19.05/ 39.67
Pin: Dia.d: 9.54
      A: 21.72
      B: 24.68
      (A+A) L1: 43.45
      (A+B) L2: 46.40
      Offset L:  48.30
Link Plate: Thickness T: 4.8        Height H: 28.9
Ave. Tensile Strength kN (kgf): 106.9 (10,900)
Max. Allowable Load kN (kgf): 17.06 (1,740)
Approx. Weight (kg/m): 3.53/ 5.68
Links of KCM JIS & 1 unit: 48

KCM C2100H/ KCM C2102H
KCM C2080/ KCM C2082

Pitch P: 50.80
Width between Inner Plates W: 15.88
Roller Dia.D: 15.88/ 28.58
Pin: Dia.d: 7.94
      A: 16.07
      B: 19.18
      (A+A) L1: 32.15
      (A+B) L2: 35.25
      Offset L:  36.90
Link Plate: Thickness T: 3.2        Height H: 23.0
Ave. Tensile Strength kN (kgf): 68.6 (7,000)
Max. Allowable Load kN (kgf): 10.69 (1,090)
Approx. Weight (kg/m): 1.88/ 2.92
Links of KCM JIS & 1 unit: 60

KCM C2080/ KCM C2082
KCM C2050/ KCM C2052

Pitch P: 31.75
Width between Inner Plates W: 9.53
Roller Dia.D: 10.16/ 19.05
Pin: Dia.d: 5.09
      A: 10.15
      B: 11.60
      (A+A) L1: 20.30
      (A+B) L2: 21.75
      Offset L: 23.00
Link Plate: Thickness T: 2.0        Height H: 14.6
Ave. Tensile Strength kN (kgf): 27.9 (2,850)
Max. Allowable Load kN (kgf): 4.31 (440)
Approx. Weight (kg/m): 0.79/ 1.25
Links of KCM JIS & 1 unit: 96

KCM C2050/ KCM C2052
