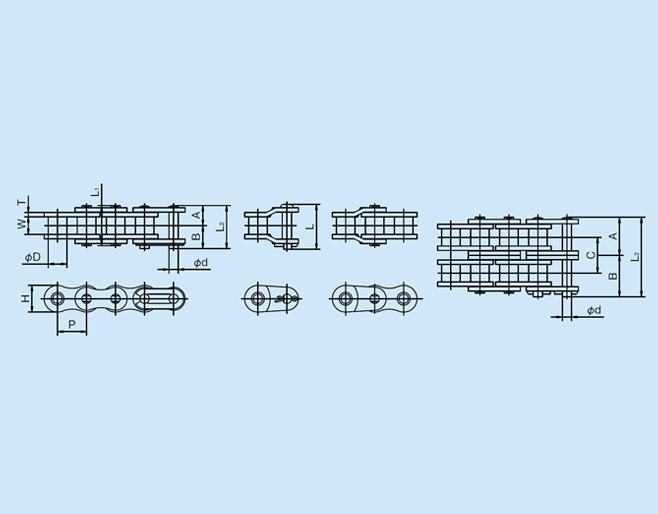

Pitch P: 12.70
Width between Inner Plates W: 7.75
Roller Dia.D: 8.51
Pin: Dia.d: 4.45

      A: 8.17/ 15.12
      B: 9.58/ 16.53
      L1: 16.35/ 30.25
      L2: 17.75/ 31.65

Offset L: 19.30/ 33.20
Link Plate: Thickness T: 1.5    Height H: 11.7
Transverse Pitch C: 13.92
Max. Allowable Load kN (kgf): 0.44( 45)/ 0.76( 77)
Approx. Weight (kg/m): 0.65/ 1.25
Links of 1 unit: 240
