Double-Pitch Roller Chain For Conveyor (DL)

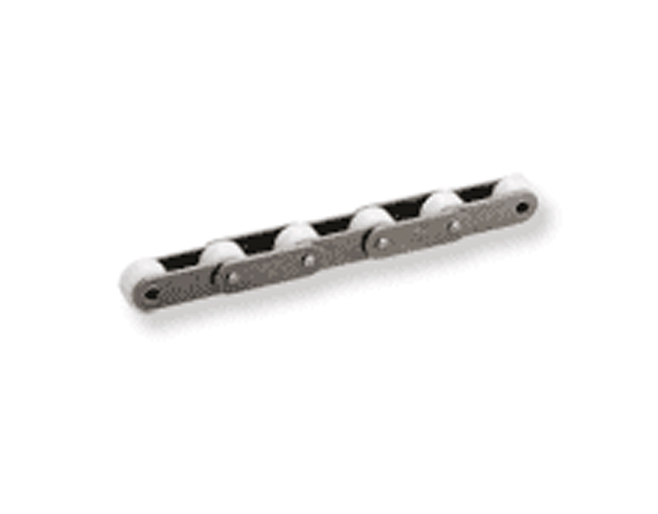

In this double-pitch chain, the material of its R-type rollers has been replaced by resin (DL) so that its weight and operating noise can be reduced. In addition to standard version, nickel-plated and stainless steel versions are also available.

Chain number：KCM C2042 DL, C2052 DL, C2062 DL, C2062H DL, C2082 DL, C2082H DL, C2102H DL, C2122H DL

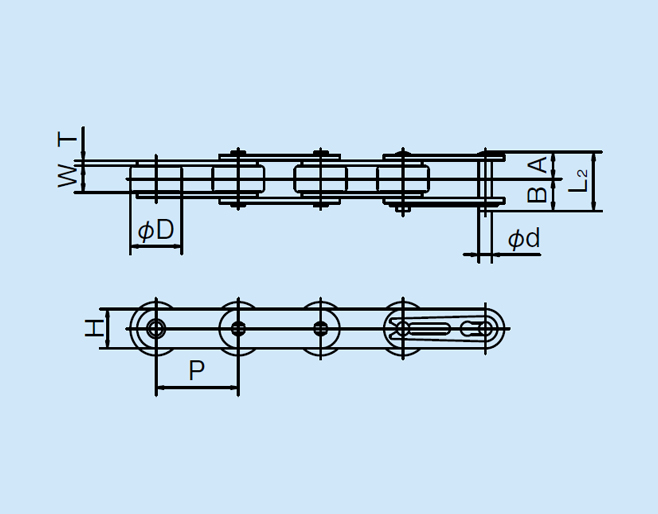

Products in the Double-Pitch Roller Chain For Conveyor (DL)

KCM C2042 DL

Pitch P: 25.40
Width between Inner Plates W: 7.95
Roller Dia.D: 15.88
Pin: Dia.d: 3.97
      (A+A) L1: 16.05
      (A+B) L2: 17.55
Link Plate: Thickness T: 1.5        Height H: 11.7
Max. Allowable Load kN (kgf):0.44 (45)
Approx. Weight (kg/m): 0.49
Links of KCM JIS & 1 unit: 120

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.

KCM C2052 DL

Pitch P: 31.75
Width between Inner Plates W: 9.53
Roller Dia.D: 19.05
Pin: Dia.d: 5.09
      (A+A) L1: 20.30
      (A+B) L2: 21.75
Link Plate: Thickness T: 2.0        Height H: 14.6
Max. Allowable Load kN (kgf): 0.69 (70)
Approx. Weight (kg/m): 0.80
Links of KCM JIS & 1 unit: 96

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.

KCM C2102H DL

Pitch P: 63.50
Width between Inner Plates W: 19.05
Roller Dia.D: 39.67
Pin: Dia.d: 9.54
      (A+A) L1: 43.45
      (A+B) L2: 46.40
Link Plate: Thickness T: 4.8       Height H: 28.9
Max. Allowable Load kN (kgf): 2.55 (260)
Approx. Weight (kg/m): 3.42
Links of KCM JIS & 1 unit: 48

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.

KCM C2082 DL (KCM C2082H DL)

Pitch P: 50.80
Width between Inner Plates W: 15.88
Roller Dia.D: 28.58
Pin: Dia.d: 7.94
      (A+A) L1: 32.15/ 35.40
      (A+B) L2: 35.25/ 38.50
Link Plate: Thickness T: 3.2/ 4.0       Height H: 23.0
Max. Allowable Load kN (kgf): 1.77 (180)
Approx. Weight (kg/m): 1.83/ 2.26
Links of KCM JIS & 1 unit: 60/ 60

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.

KCM C2122H DL

Pitch P: 76.20
Width between Inner Plates W: 25.40
Roller Dia.D: 44.45
Pin: Dia.d: 11.11
      (A+A) L1: 53.70
      (A+B) L2: 57.10
Link Plate: Thickness T: 5.6       Height H: 35.0
Max. Allowable Load kN (kgf): 3.82 (390)
Approx. Weight (kg/m): 4.66
Links of KCM JIS & 1 unit: 40

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.

KCM C2062 DL (KCM C2062H DL)

Pitch P: 38.10
Width between Inner Plates W: 12.70
Roller Dia.D: 22.23
Pin: Dia.d: 5.96
      (A+A) L1: 25.30/ 28.50
      (A+B) L2: 26.80/ 30.00
Link Plate: Thickness T: 2.4/ 3.2        Height H: 17.5
Max. Allowable Load kN (kgf): 1.03 (105)
Approx. Weight (kg/m): 1.10/ 1.40
Links of KCM JIS & 1 unit: 80/80

Material properties

Connecting links for C2080 or larger models use split pins.
Sprockets: For S-roller type chains with teeth No. 29T (with 14 1/2 working teeth) or smaller, use the exclusively designed sprocket for double-pitch roller chains.
For R-roller type chains, use the exclusively designed sprocket for R-roller type double pitch chains.
