Strengthen Stainless Steel (AS) Roller Chain
To realize this product, the pins and rollers of SS chain have been replaced with those made of precipitation hardened stainless steel to improve its allowable load.
Its maximum allowable load is 1.5 times larger than SS chain. Please use this in case an SS chain will be short of allowable load.
Its corrosion-resistance is slightly lower than SS chain. Its operating temperature is -20ﾟC to +400ﾟC.
（Note: This product has magnetism since it contains precipitation hardened stainless steel.
Chain number： KCM 40 AS, 50 AS, 60 AS, 80 AS
Its maximum allowable load is 1.5 times larger than SS chain. Please use this in case an SS chain will be short of allowable load.
Its corrosion-resistance is slightly lower than SS chain. Its operating temperature is -20ﾟC to +400ﾟC.
（Note: This product has magnetism since it contains precipitation hardened stainless steel.
Chain number： KCM 40 AS, 50 AS, 60 AS, 80 AS
Products in the Strengthen Stainless Steel (AS) Roller Chain
KCM 80AS

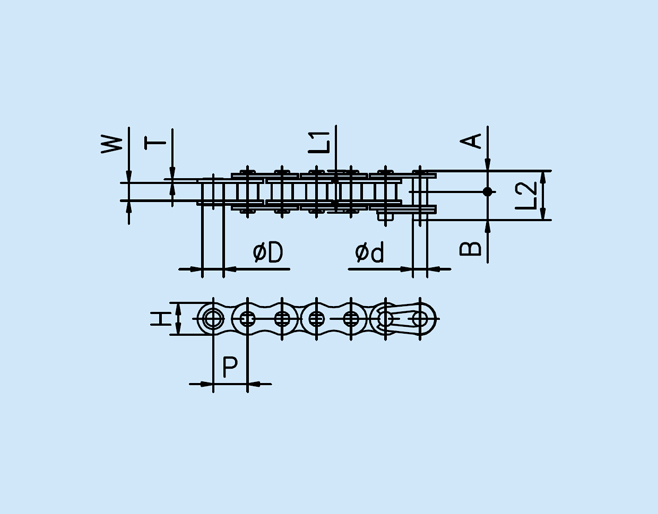

Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57
A: 2.28
B: 3.1
L1: 4.56
L2: 5.38
Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 2.65 (270)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134
- Dimension, weight, and connecting links are the
- same as those of the SS chain.
- For offset link, only two-pitch type is available.
- AS chain with attachment is available.
Material properties
KCM 60AS
Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57
A: 2.28
B: 3.1
L1: 4.56
L2: 5.38
Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 1.57(160)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134
- Dimension, weight, and connecting links are the
- same as those of the SS chain.
- For offset link, only two-pitch type is available.
- AS chain with attachment is available.
Material properties

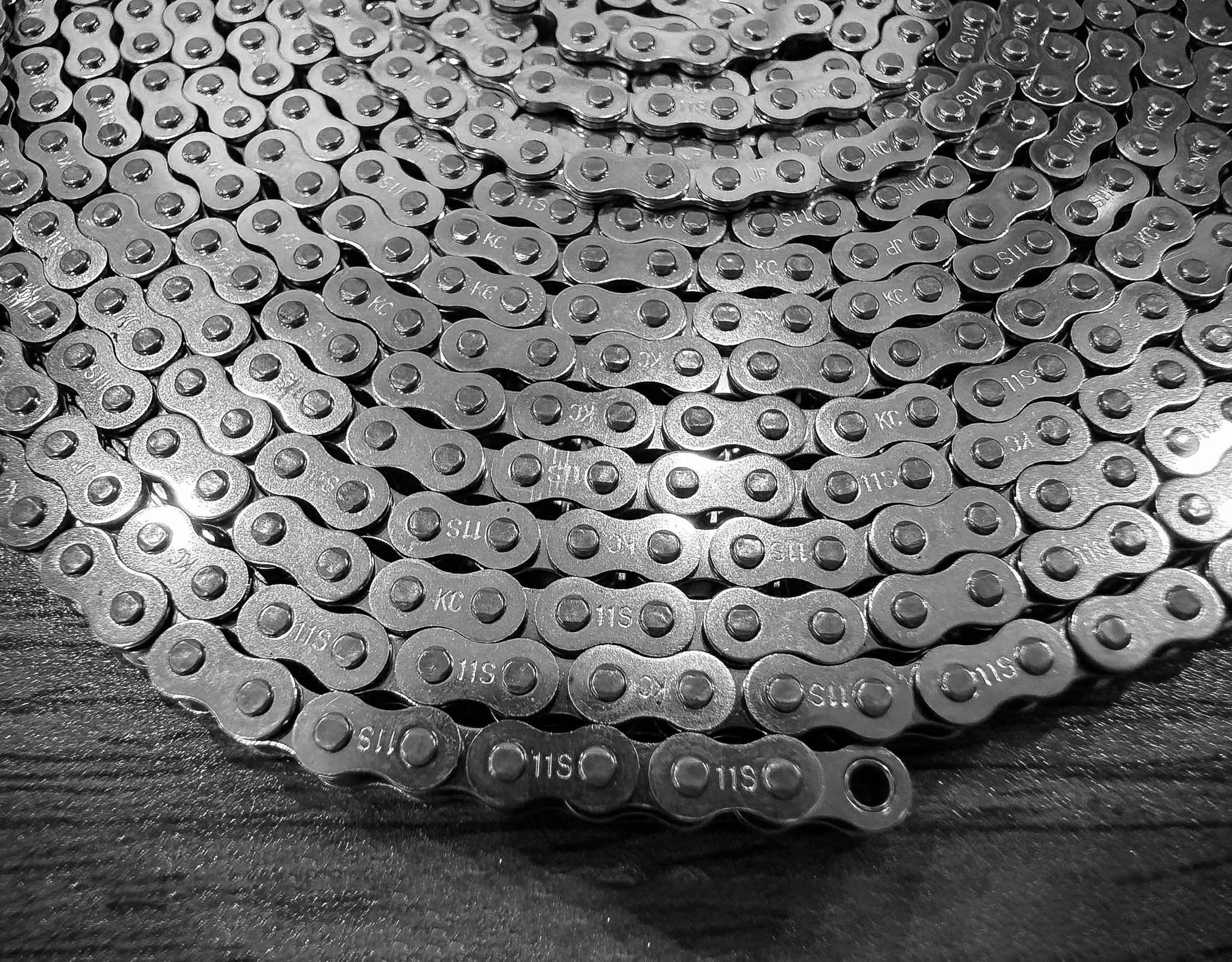

KCM 11SS
Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57
A: 2.28
B: 3.1
L1: 4.56
L2: 5.38
Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 0.05（5）
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134
- The dimention with an * shows as bush diameter.
- Connecting link of 11SS is open clip type and both sides rivet.
- We do not supply Offset link for 11SS.
- 11 SS stainless chain is lubricated.
Material properties
KCM 40AS
Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57
A: 2.28
B: 3.1
L1: 4.56
L2: 5.38
Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 0.69 (70)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134
- Dimension, weight, and connecting links are the
- same as those of the SS chain.
- For offset link, only two-pitch type is available.
- AS chain with attachment is available.
Material properties
KCM 50AS
Pitch P: 3.7465
Width between Inner Plates W: 1.83
Roller Dia.D: ＊2.285
Pin: Dia.d: 1.57
A: 2.28
B: 3.1
L1: 4.56
L2: 5.38
Offset L: 41.65/ 73.55
Link Plate: Thickness T: 0.38 Height H: 3.5
Transverse Pitch C: 3.5
Max. Allowable Load kN (kgf): 1.03(105)
Approx. Weight (kg/m): 0.052
Links of 1 unit: 134
- Dimension, weight, and connecting links are the
- same as those of the SS chain.
- For offset link, only two-pitch type is available.
- AS chain with attachment is available.
Material properties
