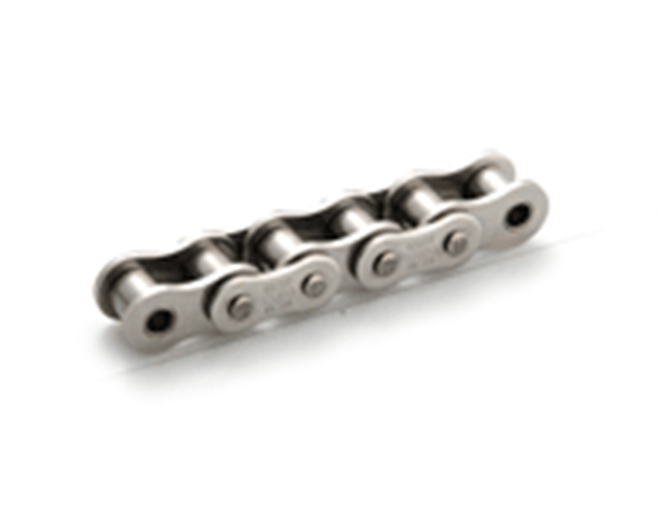

Stainless Steel (SS) Roller Chain

This chain complies with JIS, ANSI, and ISO 606-B series standards and has employed SUS304 (18Cr-8Ni) austenite stainless steel for all its parts. It is appropriate to an environment that requires heat-resistance (-20 to 400ﾟC), corrosion-resistance, and aesthetics. With attachments installed, it can be used for transportation.
Note: KCM stainless steel roller chain has slight magnetism because it has been cold worked.

Chain number： KCM 25 SS, 35 SS, 41SS, 40 SS, 50 SS, 60 SS, 80 SS , 100 SS
Chain number： KCM 04 SS, 05B SS, 06B SS, 08B SS, 10B SS, 12B SS, 16B SS

Products in the Stainless Steel (SS) Roller Chain

KCM 04 SS

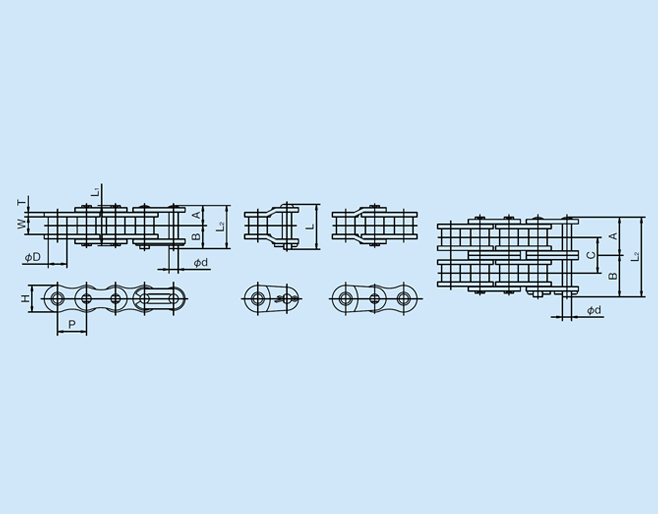

Pitch P: 6.00
Width between Inner Plates W: 2.80
Roller Dia.D: 4.00
Pin: Dia.d: 1.85

      A: 3.23
      B: 4.12
      L1: 6.45
      L2: 7.35

Offset L:−
Link Plate: Thickness T: 0.6 Height H: 4.9
Transverse Pitch C: −
Max. Allowable Load kN (kgf): 0.06 (6)
Approx. Weight (kg/m):0.11
Links of 1 unit: 834

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 12B SS > KCM 12B SS-2

Pitch P: 19.05
Width between Inner Plates W: 11.68
Roller Dia.D: 12.07
Pin: Dia.d: 5.72

      A: 11.05/ 20.77
      B: 12.55/ 22.28
      L1: 22.10/ 41.55
      L2: 23.60/ 43.05

Offset L: 26.30/ 45.75
Link Plate: Thickness T: 1.8 Height H: 16.0
Transverse Pitch C: 19.46
Max. Allowable Load kN (kgf):1.00 (105)/ 1.76 (179)
Approx. Weight (kg/m): 1.25/ 2.44
Links of 1 unit: 160

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 60 SS > KCM 60 SS-2

Pitch P: 19.05
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91
Pin: Dia.d: 5.96

      A: 12.70/ 24.10
      B: 14.20/ 25.60
      L1: 25.40/ 48.20
      L2: 26.90/ 49.70

Offset L: 29.55/ 52.35
Link Plate: Thickness T: 2.4 Height H: 17.5
Transverse Pitch C: 22.8
Max. Allowable Load kN (kgf): 1.03 (105)/ 1.76 (179)
Approx. Weight (kg/m): 1.50/ 2.95
Links of 1 unit: 160

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 25 SS > KCM 25 SS-2

Pitch P: 6.35
Width between Inner Plates W: 3.18
Roller Dia.D: ＊3.30
Pin: Dia.d: 2.31

      A: 3.82/ 7.03
      B: 4.83/ 8.02
      L1: 7.65/ 14.05
      L2: 8.65/ 15.05

Offset L: −
Link Plate: Thickness T: 0.75 Height H: 5.8
Transverse Pitch C: 6.4
Max. Allowable Load kN (kgf): 0.12 (12)/ 0.21 (21)
Approx. Weight (kg/m):0.14/ 0.26
Links of 1 unit: 480

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 10B SS > KCM 10B SS-2

Pitch P: 15.875
Width between Inner Plates W: 9.65
Roller Dia.D: 10.16
Pin: Dia.d: 5.08

      A: 9.58/ 17.87
      B: 11.02/ 19.33
      L1: 19.15/ 35.75
      L2: 20.60/ 37.20

Offset L: 21.95/ 38.55
Link Plate: Thickness T: 1.65 Height H: 14.6
Transverse Pitch C: 16.59
Max. Allowable Load kN (kgf): 0.70 (70)/ 1.17 (119)
Approx. Weight (kg/m): 0.94/ 1.84
Links of 1 unit: 192

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 16B SS > KCM 16B SS-2

Pitch P: 25.40
Width between Inner Plates W: 17.02
Roller Dia.D: 15.88
Pin: Dia.d: 8.28

      A: 17.60/ 33.55
      B: 20.70/ 36.65
      L1: 35.20/ 67.10
      L2: 38.30/ 70.20

Offset L: 41.65/ 73.55
Link Plate: Thickness T: 4.0 (3.2) Height H: 19.7
Transverse Pitch C: 31.88
Max. Allowable Load kN (kgf): 1.77 (180)/ 3.00 (306)
Approx. Weight (kg/m): 2.63/ 5.19
Links of 1 unit: 120

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 40 SS > KCM 40 SS-2

Pitch P: 12.70
Width between Inner Plates W: 7.95
Roller Dia.D: 7.92
Pin: Dia.d: 3.97

      A: 8.07/ 15.27
      B: 9.58/ 16.78
      L1: 16.15/ 30.55
      L2: 17.65/ 32.05

Offset L: 19.05/ 33.45
Link Plate: Thickness T: 1.5 Height H: 11.7
Transverse Pitch C: 14.4
Max. Allowable Load kN (kgf): 0.44 (45)/ 0.76 (77)
Approx. Weight (kg/m): 0.63/ 1.19
Links of 1 unit: 240

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 100 SS > KCM 100 SS-2

Pitch P: 31.75
Width between Inner Plates W: 19.05
Roller Dia.D: 19.05
Pin: Dia.d: 9.54

      A: 20.20/ 38.10
      B: 23.15/ 41.05
      L1: 40.40/ 76.20
      L2: 43.35/ 79.15

Offset L: 44.05/ 79.85
Link Plate: Thickness T: 4.0 Height H: 28.9
Transverse Pitch C: 35.8
Max. Allowable Load kN (kgf): 2.55 (260)/ 4.33 (442)
Approx. Weight (kg/m): 4.09/ 8.10
Links of 1 unit: 96

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 35 SS > KCM 35 SS-2

Pitch P: 9.525
Width between Inner Plates W: 4.78
Roller Dia.D: ＊5.08
Pin: Dia.d: 3.59

      A: 5.77/ 10.82
      B: 7.13/ 12.18
      L1: 11.55/ 21.65
      L2: 12.90/ 23.00

Offset L: 13.85/ 23.95
Link Plate: Thickness T: 1.25 Height H: 8.8
Transverse Pitch C: 10.1
Max. Allowable Load kN (kgf): 0.26 (27)/ 0.45 (46)
Approx. Weight (kg/m): 0.33/ 0.65
Links of 1 unit: 320

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 50 SS > KCM 50 SS-2

Pitch P: 15.875
Width between Inner Plates W: 9.53
Roller Dia.D: 10.16
Pin: Dia.d: 5.09

      A: 10.20/ 19.25
      B: 11.60/ 20.68
      L1: 20.40/ 38.50
      L2: 21.80/ 39.90

Offset L: 23.05/ 41.15
Link Plate: Thickness T: 2.0 Height H: 14.6
Transverse Pitch C: 18.1
Max. Allowable Load kN (kgf): 0.69 (70)/ 1.17 (119)
Approx. Weight (kg/m): 1.04/ 2.01
Links of 1 unit: 192

Material properties

Figures marked with asterisk * imply bush diameter.
For the KCM25SS, only two-pitch offset links are available.
For dimensions of the attachments，refer to pages 36 to 37.
Connecting links of KCM80SS or larger models use split pins.

KCM 05B SS > KCM 05B SS-2

Pitch P: 8.00
Width between Inner Plates W: 3.00
Roller Dia.D: 5.00
Pin: Dia.d: 2.31

      A: 3.82/ 6.65
      B: 4.83/ 7.65
      L1: 7.65/ 13.30
      L2: 8.65/ 14.30

Offset L:−
Link Plate: Thickness T: 0.75 Height H: 7.1
Transverse Pitch C: 5.64
Max. Allowable Load kN (kgf): 0.12 (12)/ 0.21 (21)
Approx. Weight (kg/m): 0.18/ 0.34
Links of 1 unit: 626

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 08B SS > KCM 08B SS-2

Pitch P: 12.70
Width between Inner Plates W: 7.75
Roller Dia.D: 8.51
Pin: Dia.d: 4.45

      A: 8.17/ 15.12
      B: 9.58/ 16.53
      L1: 16.35/ 30.25
      L2: 17.75/ 31.65

Offset L: 19.30/ 33.20
Link Plate: Thickness T: 1.5 Height H: 11.7
Transverse Pitch C: 13.92
Max. Allowable Load kN (kgf): 0.44( 45)/ 0.76( 77)
Approx. Weight (kg/m): 0.65/ 1.25
Links of 1 unit: 240

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.

KCM 06B SS > KCM 06B SS-2

Pitch P: 9.525
Width between Inner Plates W: 5.72
Roller Dia.D: 6.35
Pin: Dia.d: 3.28

      A: 6.10/ 11.22
      B: 7.50/ 12.63
      L1: 12.20/ 22.45
      L2: 13.60/ 23.85

Offset L: 15.15/ 25.40
Link Plate: Thickness T: 1.3 (1.0) Height H: 8.1
Transverse Pitch C: 10.24
Max. Allowable Load kN (kgf): 0.26( 27)/ 0.45( 46)
Approx. Weight (kg/m): 0.39/ 0.77
Links of 1 unit: 320

Material properties

For the KCM 04SS and 05BSS, only two-pitch offset links are available.
Connecting links of KCM 16BSS are of split pin type.
