Lubrication Free Chain

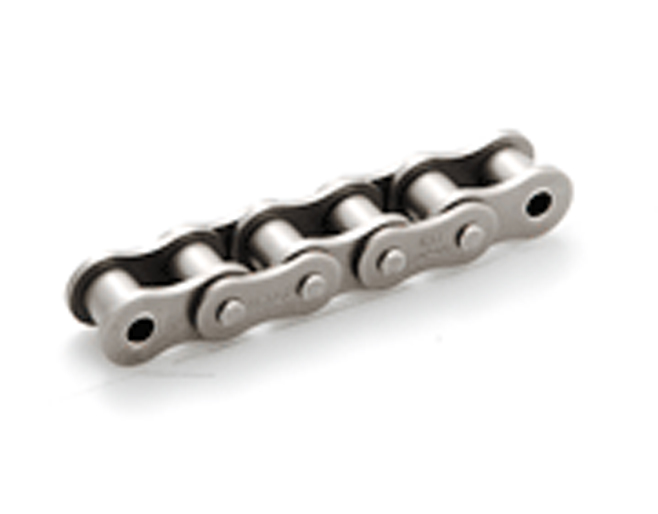

KCM lubrication free chain is a maintenance-free chain with self-lubricating capability using a special oil-impregnating bush.
Please use this product at a location where oil impregnation is not preferable or in-service oil impregnation is difficult.
KCM lubrication free chain have two types "NL" &"SL".
NL： Its rollers enable smooth mesh with sprockets.
SL：The chain is made of thick sintered sleeve, soaked in oil.
Nickel-plated version and a variety of attachments are also available.
Use this chain at the chain velocity of 150m/min or lower.
Should be used in the range of common operating temperatures (-10ﾟC to +150ﾟC).

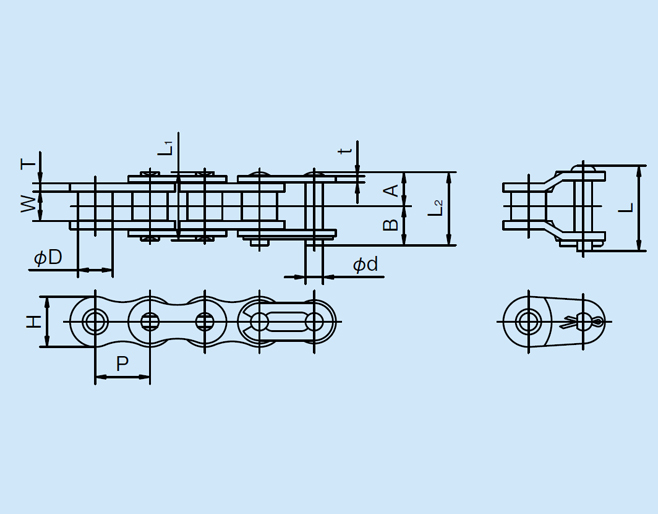

Products in the Lubrication Free Chain
KCM 50 NL
Pitch P: 15.875
Width between Inner Plates W: 9.53
Roller Dia.D: 10.16
Pin: Dia.d: 5.09
A: 10.60
B: 12.05
(A+A) L1: 21.20
(A+B) L2: 22.65
Offset L: 24.65
Link Plate: Thickness T: 2.4 Thickness t: 2.0 Height H: 14.6
Ave. Tensile Strength kN (kgf): 29.9 (3,050)
Max. Allowable Load kN (kgf): 6.37 (650)
Approx. Weight (kg/m):1.08
Links of KCM JIS & 1 unit: 192
- Pin is longer than that of standard chain because inner plate is thickened. Avoid interference with equipment.
- In case of single strand chain, standard sprocket can be used. In case of multiple strand chain, exclusive sprocket is required.
- Maximum allowable load is determined based on tensile breakage, not on strength of bushing.
- Connecting link of 80NL is of split pin type.
Material properties
KCM 60 NL
Pitch P: 19.05
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91
Pin: Dia.d: 5.96
A: 13.50
B: 15.10
(A+A) L1: 27.00
(A+B) L2: 28.60
Offset L: 32.65
Link Plate: Thickness T: 3.2 Thickness t: 2.4 Height H: 17.5
Ave. Tensile Strength kN (kgf): 41.2(4,200)
Max. Allowable Load kN (kgf): 8.83( 900)
Approx. Weight (kg/m): 1.63
Links of KCM JIS & 1 unit: 160
- Pin is longer than that of standard chain because inner plate is thickened. Avoid interference with equipment.
- In case of single strand chain, standard sprocket can be used. In case of multiple strand chain, exclusive sprocket is required.
- Maximum allowable load is determined based on tensile breakage, not on strength of bushing.
- Connecting link of 80NL is of split pin type.
Material properties
KCM 80 NL
Pitch P: 25.40
Width between Inner Plates W: 15.88
Roller Dia.D: 15.88
Pin: Dia.d: 7.94
A: 16.90
B: 20.00
(A+A) L1: 33.80
(A+B) L2: 36.90
Offset L: 40.15
Link Plate: Thickness T: 4.0 Thickness t: 3.2 Height H: 23.0
Ave. Tensile Strength kN (kgf): 72.6(7,400)
Max. Allowable Load kN (kgf): 14.7 (1,500)
Approx. Weight (kg/m): 2.76
Links of KCM JIS & 1 unit: 120
- Pin is longer than that of standard chain because inner plate is thickened. Avoid interference with equipment.
- In case of single strand chain, standard sprocket can be used. In case of multiple strand chain, exclusive sprocket is required.
- Maximum allowable load is determined based on tensile breakage, not on strength of bushing.
- Connecting link of 80NL is of split pin type.
Material properties
KCM 40 NL
Pitch P: 12.70
Width between Inner Plates W: 7.95
Roller Dia.D: 7.92
Pin: Dia.d: 3.97
A: 8.60
B: 10.10
(A+A) L1: 17.20
(A+B) L2: 18.70
Offset L: 21.00
Link Plate: Thickness T: 2.0 Thickness t: 1.5 Height H: 11.7
Ave. Tensile Strength kN (kgf): 18.1 (1,850)
Max. Allowable Load kN (kgf): 3.63 (370)
Approx. Weight (kg/m): 0.67
Links of KCM JIS & 1 unit: 240
- Pin is longer than that of standard chain because inner plate is thickened. Avoid interference with equipment.
- In case of single strand chain, standard sprocket can be used. In case of multiple strand chain, exclusive sprocket is required.
- Maximum allowable load is determined based on tensile breakage, not on strength of bushing.
- Connecting link of 80NL is of split pin type.
Material properties
