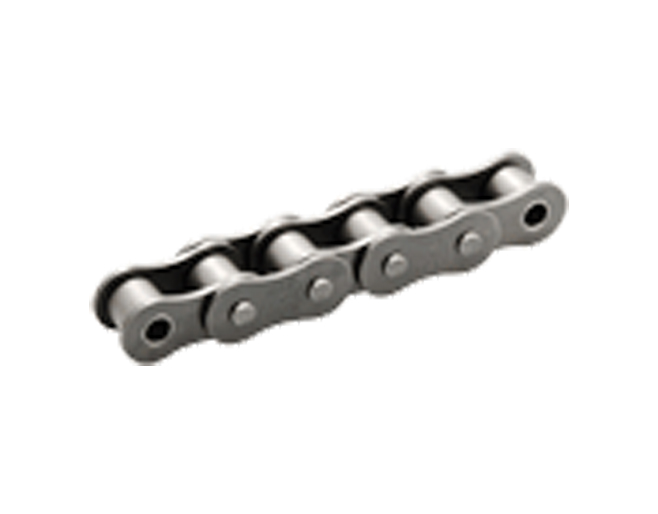

BS Roller Chain

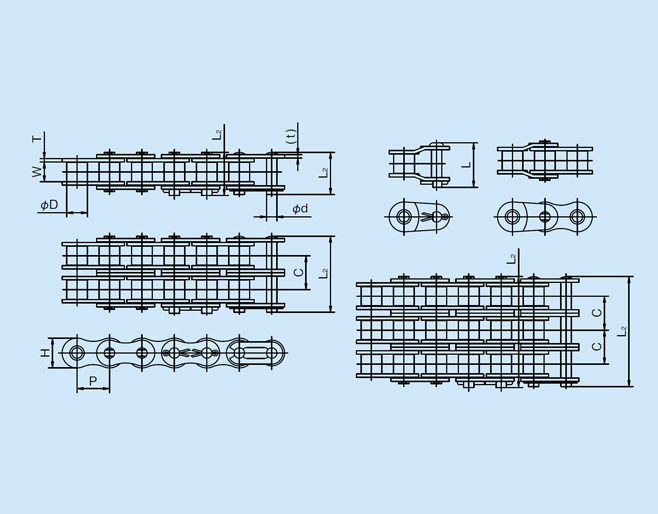

This product conforms to ISO 606-B series. Please contact us if you need this for equipment or machines imported form Europe.

Chain call number： KCM 03, 04, 05B, 06B, 08B, 10B, 12B, 16B, 20B, 24B

Products in the BS Roller Chain

KCM 04

Pitch P: 6.00
Width between Inner Plates W: 2.80
Roller Dia.D: 4.00
Pin: Dia.d: 1.85
      L2: 7.35
      Offset L: −
Link Plate: Thickness T: 0.6         Height H: 4.9
Transverse Pitch C: −
ISO 606 Min. Tensile Strength kN (kgf): −
KCM Min. Tensile Strength kN (kgf): 3.2 (330)
Approx. Weight (kg/m): 0.11
Links of 1 unit: 834

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 03

Pitch P: 5.00
Width between Inner Plates W: 2.50
Roller Dia.D: 3.20
Pin: Dia.d: 1.49
      L2: 7.65
      Offset L: −
Link Plate: Thickness T: 0.75         Height H: 4.0
Transverse Pitch C: −
ISO 606 Min. Tensile Strength kN (kgf): −
KCM Min. Tensile Strength kN (kgf): 2.6   (270)
Approx. Weight (kg/m): 0.09
Links of 1 unit: 1000

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 05B > KCM 05B-2 > KCM 05B-3

Pitch P: 8.00
Width between Inner Plates W: 3.00
Roller Dia.D: 5.00
Pin: Dia.d: 2.31
      L2: 8.60/ 14.25/ 19.90
      Offset L: −
Link Plate: Thickness T: 0.75         Height H: 7.1
Transverse Pitch C: 5.64
ISO 606 Min. Tensile Strength kN (kgf): 4.4 (449)/ 7.8 (800)/ 11.1 (1,130)
KCM Min. Tensile Strength kN (kgf): 4.9 (500)/ 8.5 (870)/ 12.2 (1,240)
Approx. Weight (kg/m): 0.18/ 0.31/ 0.46
Links of 1 unit: 626

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 06B > KCM 06B-2 > KCM 06B-3

Pitch P: 9.525
Width between Inner Plates W: 5.72
Roller Dia.D: 6.35
Pin: Dia.d: 3.28
      L2: 13.60/ 23.85/ 34.10
      Offset L: 15.15/ 25.40/ 35.65
Link Plate: Thickness T:1.3　(1.0)         Height H: 8.1
Transverse Pitch C: 10.24
ISO 606 Min. Tensile Strength kN (kgf): 8.9( 910)/ 16.9( 1,720)/ 24.9( 2,540)
KCM Min. Tensile Strength kN (kgf): 9.0 (920)/ 17.0 (1,730)/ 24.9 (2,540)
Approx. Weight (kg/m): 0.39/ 0.74/ 1.10
Links of 1 unit: 320

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 16B > KCM 16B-2 > KCM 16B-3

Pitch P: 25.40
Width between Inner Plates W: 17.02
Roller Dia.D: 15.88
Pin: Dia.d: 8.28
L2: 38.10/ 70.00/ 101.90
Offset L: 41.45/ 73.35/ 105.25

Link Plate: Thickness T: 4.0 (3.2)　 Height H: 19.7
Transverse Pitch C: 31.88
ISO 606 Min. Tensile Strength kN (kgf): 60 (6,120)/ 106 (10,810)/ 160 (16,320)

KCM Min. Tensile Strength kN (kgf): 69.6 (7,100)/ 127.5 (13,000)/ 192.2 (19,600)
Approx. Weight (kg/m): 2.62/ 5.18/ 7.74
Links of 1 unit: 120

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 12B > KCM 12B-2 > KCM 12B-3

Pitch P: 19.05
Width between Inner Plates W: 11.68
Roller Dia.D: 12.07
Pin: Dia.d: 5.72
L2: 23.60/ 43.05/ 62.50
Offset L: 26.30/ 45.75/ 65.20

Link Plate: Thickness T: 1.8 Height H: 16.0
Transverse Pitch C: 19.46
ISO 606 Min. Tensile Strength kN (kgf): 28.9 (2,950)/ 57.8 (5,890)/ 86.7 (8,840)

KCM Min. Tensile Strength kN (kgf): 31.0 (3,160)/ 61.0 (6,220)/ 92.2 (9,400)
Approx. Weight (kg/m): 1.24/ 2.44/ 3.65
Links of 1 unit: 160

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 24B > KCM 24B-2 > KCM 24B-3

Pitch P: 38.10
Width between Inner Plates W: 25.40
Roller Dia.D: 25.40
Pin: Dia.d: 14.63
L2: 58.70/ 107.05/ 155.40
Offset L: 64.20/ 112.55/ 160.90

Link Plate: Thickness T: 6.0 (5.0)　　 Height H: 33.0
Transverse Pitch C: 48.36
ISO 606 Min. Tensile Strength kN (kgf): 160 (16,320)/ 280 (28,550)/ 425 (42,340)

KCM Min. Tensile Strength kN (kgf): 166.7(17,000)/ 334.4(34,100)/ 500.1(51,000)
Approx. Weight (kg/m): 6.65/ 13.11/ 19.57
Links of 1 unit: 80

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 10B > KCM 10B-2 > KCM 10B-3

Pitch P: 15.875
Width between Inner Plates W: 9.65
Roller Dia.D: 10.16
Pin: Dia.d: 5.08
      L2: 20.15/ 36.95/ 53.35
      Offset L: 21.50/ 38.10/ 54.70
Link Plate: Thickness T: 1.5         Height H: 14.6
Transverse Pitch C: 16.59
ISO 606 Min. Tensile Strength kN (kgf): 22.2 (2,260)/ 44.5 (4,540)/ 66.7 (6,800)
KCM Min. Tensile Strength kN (kgf): 22.9 (2,340)/ 44.5 (4,540)/ 66.8 (6,810)
Approx. Weight (kg/m): 0.91/ 1.80/ 2.70
Links of 1 unit: 192

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 08B > KCM 08B-2 > KCM 08B-3

Pitch P: 12.70
Width between Inner Plates W: 7.75
Roller Dia.D: 8.51
Pin: Dia.d: 4.45
      L2: 18.05/ 31.95/ 45.90
      Offset L: 19.20/ 33.10/ 47.05
Link Plate: Thickness T: 1.6         Height H: 11.7
Transverse Pitch C: 13.92
ISO 606 Min. Tensile Strength kN (kgf): 17.8 (1,820)/ 31.1 (3,170)/ 44.5 (4,540)
KCM Min. Tensile Strength kN (kgf): 18.9 (1,930)/ 32.0 (3,260)/ 47.5 (4,840)
Approx. Weight (kg/m): 0.65/ 1.25/ 1.85
Links of 1 unit: 240

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.

KCM 20B > KCM 20B-2 > KCM 20B-3

Pitch P: 31.75
Width between Inner Plates W: 19.56
Roller Dia.D: 19.05
Pin: Dia.d: 10.19
L2: 43.95/ 80.40/ 116.85
Offset L: 47.25/ 83.70/ 120.15

Link Plate: Thickness T: 4.5 (3.5)　　 Height H: 26.0
Transverse Pitch C: 36.45
ISO 606 Min. Tensile Strength kN (kgf): 95 ( 9,690)/ 170 (17,340)/ 250 (25,490)

KCM Min. Tensile Strength kN (kgf): 98.1(10,000)/ 197.1(20,100)/ 295.2(30,100)
Approx. Weight (kg/m): 3.81/ 7.52/ 11.24
Links of 1 unit: 96

Material properties

Link plates for 06 models are F type (oval).
Spring type connecting links are used to chains No. 03 to 12B. Sprit pin type connecting links are used to 16B to 24B.
2-pitch type offset links are used to 03, 04, and 05B.
Sprockets: Special sprockets are available.
